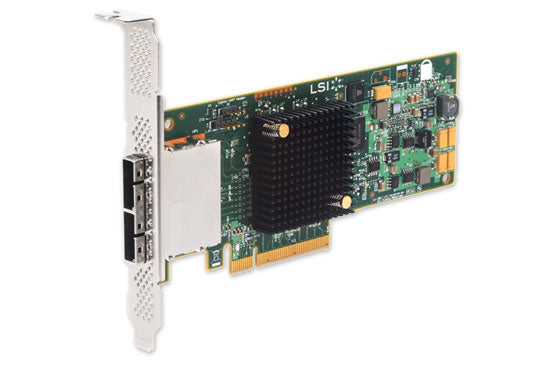

LSI00300/9207-8e SGL image

Avago LSI SAS9207-8e, 8-Ports External, 6Gb/s SATA+SAS, PCIe 3.0 HBA Controller Card

  • $159.00


Avago LSI SAS 9207-8e, 8-Ports External, 6Gb/s SATA+SAS, PCIe 3.0 HBA Controller Card.

New Bulk. Card Only.

Overview

  • Low-profile, eight-port external 6Gb/s SATA and SAS PCIe 3.0 HBA
  • Designed to enable large-scale storage arrays through eight, 6Gb/s SAS ports
  • Supports up to 1024 SATA and SAS end devices

Features

  • 8 external 6Gb/s SAS+SATA ports
  • 8 lanes, PCI Express 3.0
  • Two, x4 external SFF8088 Mini-SAS connectors
  • LSISAS2308 6Gb/s SAS+SATA Controller
  • Low-profile form-factor design
  • Supports up to 1024 SAS or SATA end devices
  • Supports SSDs, HDDs, and tape devices
  • Fusion-MPT? 2.0 architecture can achieve more than 700,000 I/Os per second
  • Supports major operating systems
  • RoHS compliant

Benefits

  • Maximum connectivity and pefromance in a low profile form factor
  • 8 lanes of PCI Express 3.0 provides faster signaling for high-bandwidth applications and broad compatibility with latest motherboards
  • High performance with 6Gb/s data transfer rates
  • Mac OS support for additional integration flexibility

Specifications

IO Controller LSI SAS2308 / Fusion MPT 2.0
Storage Connectivity; Data Transfer Rates 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth Half Duplex
600 MB/s per lane
Port Configurations 8 ea, x1 ports (individual drives)
2 ea, x4 wide ports
Host Bus x8 lane, PCI Express 3.0
PCI Data Burst Transfer Rates Half Duplex
x8, PCIe, 8000 MB/s
Physical Dimensions Low Profile (2.6" x 6.6")
Connectors Two Mini-SAS external connectors (SFF8088)
Brackets Full height and low profile
Cable Support Active Copper
Operating Voltage +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal) 9.8W typical, Airflow 200 LFM
Device Support 1024 Non-RAID devices
MTBF >2,000,000 hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/support/pages/downloads.aspx for details on versions



Environmental

Operating



Storage
0?C to 55?C -45?C to 105?C
5 to 90% Non-condensing 5 to 90% Non-condensing
