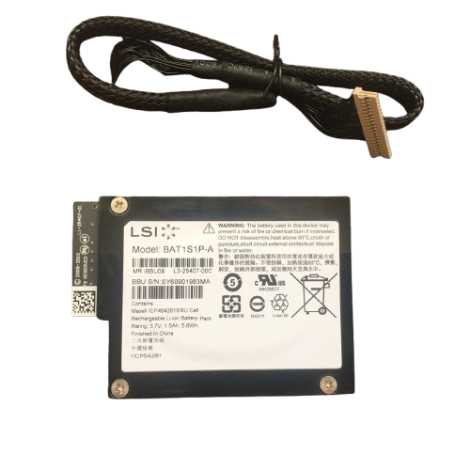

LSIiBBU09 / iBBU09 LSI Battery Backup Unit for SAS MegaRAID 9265/9285 with remote cable
LSI00279 LSIiBBU09 / BAT1S1P-A LSI Battery Backup Unit for SAS MegaRAID 9265/9285 series only. with remote cable
The LSIiBBU09 (or iBBU09) Intelligent Battery Backup Unit is primarily used with the LSI MegaRAID SAS 9265, 9266, 9270, 9271, 9285, and 9286 series RAID controllers. It is designed to protect the integrity of the cache memory on these 6Gb/s SAS/SATA controllers in the event of a power failure. You can use it with other controller such as the 9260 if using the remote cable.
Key Compatible RAID Controllers:
LSI MegaRAID: 9265-8i, 9266-4i, 9266-8i, 9270-8i, 9271-8i, 9285-8e, 9286-8e, 9286CV-8e (Directly or remote cable)
LSI MegaRAID: 9260-4i, 9260-8i, 9261-8i, 9280-4i4e, etc (Using remote cable)
IBM ServeRAID: M5110, M5110e, M5120, M5016 (using 81Y4491, 81Y4508, 81Y4588 kits)
Dell PERC:Often used with Dell 86R58 (compatible with LSI 9265-8i)
Intel: RS25 (AXXRSBBU9)
The iBBU09 connects directly or remotely via cable to the transportable memory module (TMM02) on these controllers to provide backup power.
