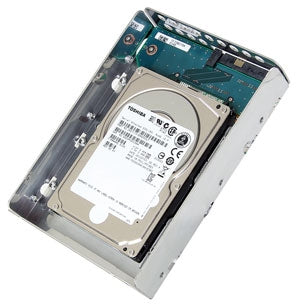

Toshiba AL13SE AL13SEL300 300GB 10K RPM 2.5" SAS Drive with 3.5" Bracket Internal Hard Drive

  • $215.00

roduct Features

    • 3.5 inch Enterprise Hard Disk Drive
    • Capacity: 300 GB to 900 GB
    • Rotational Speed: 10,500 RPM
    • 64 MiB Buffer
    • 6 Gbps SAS-2 Interface
    • Also available as 2.5'' HDD model: AL13SEBxxx
High Durability24/7

Product info

The new generation Enterprise series of hard disk drives from Toshiba, AL13SEL, has been developed according to the highest reliability and performance requirements for HDD applications in the server environment.
With the AL13SELxxx, Toshiba Storage Products Division delivers 900GB of capacity in a high-speed drive especially designed for business-critical data. The series operates at 10,500 RPM and distinguishes itself from 2.5.inch form factor competition through superior technical and power consumption specifications.
The 2.5-inch (6.4 cm) enterprise line of HDDs offers a 6GB/s SAS interface and is made for demanding, power-conscious and data-intensive storage applications and allows critical data to be accessed whenever necessary, 24/7.
By utilising an improved head-disk interface proximity sensor, the AL13SEL series boasts a 25 per cent increase in operating reliability rate of two million power-on hours. The series also features increased power efficiency compared to traditional 3.5-inch enterprise storage counterparts.
  • Technical Specs
    • Physical specifications
      Functional specifications
      Form factor 2.5 inch
      Height 15.0 mm
      Width 69.85 mm
      Depth 100.45 mm
      Weight (max.) 240 g
      Ambient temperature (operating)
      • From +5 °C to +55 °C
      Ambient temperature (non-operating)
      • From -40 °C to +70 °C
      Vibration (operating) 0.6 mm (5 to 20Hz) / 20 - 300Hz: 1 G
      Vibration (non-operating) 3.1 mm (5 to 20Hz) / 20 - 300Hz: 5 G
      Shock (operating) 1 ms: 100 G
      Shock (non-operating) 2 ms: 400 G
      Acoustics Ready (typ.): 30 dB
      Formatted storage capacity 300 GByte 450 GByte 600 GByte 900 GByte
      Seek time (track to track)
      • Read: 0.2 ms
      • Write: 0.22 ms
      Seek time (average)
      • Read: 3.7 ms
      • Write: 4.1 ms
      Seek time (max.)
      • Read: 7.5 ms
      • Write: 8.0 ms
      Average latency time 2.86 ms
      Rotational speed 10,500 rpm
      Interface SAS-2.0 (6 Gbps max.)
      Data buffer size 64MiB FIFO ring buffer
        AL13SEL300 AL13SEL450 AL13SEL600 AL13SEL900
