ST9300605SS-DELL image

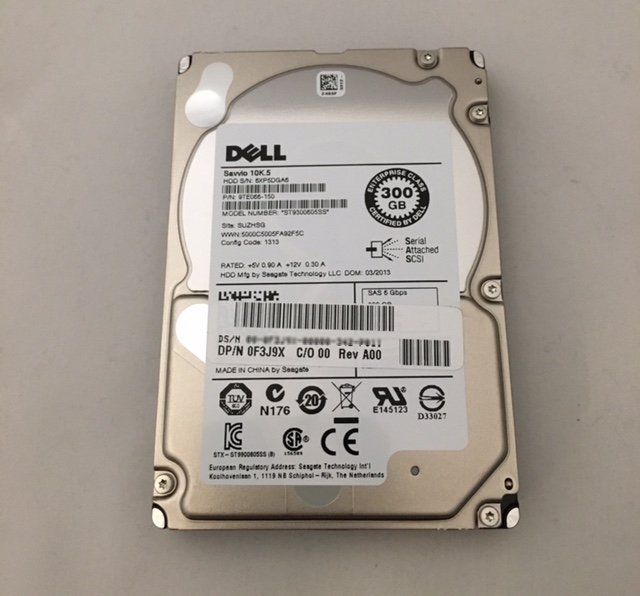

Dell Seagate ST9300605SS Savvio 10K.5 SAS 6 Gbps 300GB 2.5-inch 10K SAS Hard Drive

  • $69.00


Dell / Seagate Savvio 10K.5 Enteprise Class 300GB 10K 2.5" SAS 6 Gbps Hard Drive. Certified by Dell.

Note: You can use this in Dell or Non-Dell computers.



n

The Seagate? Savvio? 10K.5 hard drive enables OEMs, system builders and data centers to:

  • Improve storage efficiency
  • Ease capacity, interface and form factor transitions
  • Ensure data integrity and protection throughout the storage process even if the device is lost or stolen

Key Features and Benefits

  • Delivers the highest-capacity in a 2.5-inch, 10K-RPM hard drive (up to 900GB) to manage more data without increasing the number of drives
  • First SFF drive to offer four capacity points on a single platform
  • Industry-leading 0.44% AFR for field-proven reliability
  • Improves performance for faster data storage and access
  • Reduces power consumption and enables green IT initiatives
  • PowerChoice? technology for T10-compliant power management enables IT organizations to tailor systems for performance and power consumption
  • Reduces system design, qualification and inventory costs for OEMs
  • Enables data centers to better manage hard drive transitions
  • Protection Information protects against inadvertent data change?
  • Optional Self-Encrypting Drive (SED) models? help companies be compliant with corporate and federal data security mandates and protect data-at-rest throughout the life of the storage device should the device be lost, stolen, and/or retired
  • Seagate Unified Storage architecture reduces system complexity and operating costs by converging disparate interfaces, form factors and security standards

Seagate? Savvio? 10K.5 SAS 6-Gb/s 300-GB Hard Drive

ST9300605SS

Specifications
Model Number ST9300605SS
Interface 6-Gb/s SAS
Cache 64MB
Capacity 300GB
Areal density (avg) 508Gb/in2
Guaranteed Sectors 585,937,500
PHYSICAL
Height (maximum) 15.00mm (0.591 in)
Width (maximum) 70.10mm (2.760 in)
Length (maximum) 100.45mm (3.955 in)
Weight (typical) 211g (.465 lb)
PERFORMANCE
Spin Speed (RPM) 10,000 RPM
Sustained data transfer rate 168MB/s
Average latency 3.0ms
Random read seek time 3.4ms
Random write seek time 3.8ms
I/O data transfer rate 600MB/s
Unrecoverable read errors 1 in 1016
RELIABILITY
MTBF 2,000,000 hours
Annual Failure Rate 0.44%
POWER
12V start max current 0.85A
5V start max current 0.58A
Average idle power 3.48W
ENVIRONMENT
Ambient Temperature
Operating 5??55?C
Nonoperating -40??70?C
Maximum operating temperature change 20?C per hour
Maximum nonoperating temperature change 20?C per hour
Shock
Operating Shock (max) 40 Gs for 11ms
Nonoperating Shock (max) 400 Gs for 2ms
ACOUSTICS
Acoustics (Idle Volume) 3.0 bels
Features
Storage Type HDD
