C5454-xM-M image

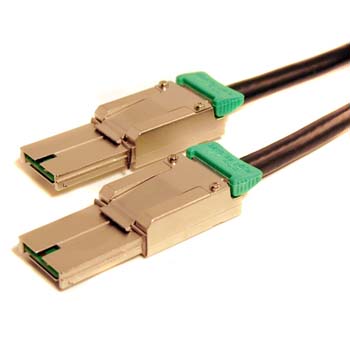

TMC C5454-xM-M - Madison PCIe x4-x4 External PCIe x4 to External PCIe x4 cable. 28AWG. Madison

  • $69.00


PCIe CABLES

PCIe x4 and x8 cables, also called PCI Express cables, are now in stock. PCIe cables are new high-performance cables used in various applications such as networking and storage equipment, peripheral devices, workstations and imaging systems.
    Product Features:

  • PCIe cables available in x4/x4, x4/x8, and x4/x8 configurations
  • Available in 1m, 2m, 3m, 5m and 7m lengths
  • PCI-SIG PCI Express Cable Specification Compliant
  • RoHS Compliant
  • Includes x4 or x8 PCIe lanes and side-band signals for:
    • Power-On
    • Reset
    • SM Bus (clock/data)
    • 100MHz Reference Clock
    • Board Present
    • Wake
  • Positive latching mechanism per the PCI-SIG specification
  • Supports 10 Gbps full-duplex transfer rates




SKU:   C5454-xM

PCIe x4 connector PCIe x4 connector PCIe x4-x4, 1 Meter, 28AWG, Ejectors
PCIe x4-x4, 2 Meter, 28AWG, Ejectors
PCIe x4-x4, 3 Meter, 28AWG, Ejectors
PCIe x4-x4, 5 Meter, 26AWG, Ejectors
PCIe x4-x4, 7 Meter, 24AWG, Ejectors

External PCIe cable, x4 (36 pin) - x4 (36 pin), both connectors equipped with ejectors.




SKU:   C5458-xM

PCIe x4 connector PCIe x4 connector PCIe x4-x8, 1 Meter, 28AWG, Ejectors
PCIe x4-x8, 2 Meter, 28AWG, Ejectors
PCIe x4-x8, 3 Meter, 28AWG, Ejectors
PCIe x4-x8, 5 Meter, 26AWG, Ejectors
PCIe x4-x8, 7 Meter, 24AWG, Ejectors


External PCIe cable, x4 (36 pin) - x8 (68 pin), both connectors equipped with ejectors.




SKU:   C5858-1M

PCIe x4 connector PCIe x4 connector PCIe x8-x8, 1 Meter, 28AWG, Ejectors
PCIe x8-x8, 2 Meter, 28AWG, Ejectors
PCIe x8-x8, 3 Meter, 28AWG, Ejectors
PCIe x8-x8, 5 Meter, 26AWG, Ejectors
PCIe x8-x8, 7 Meter, 24AWG, Ejectors


External PCIe cable, x8 (68 pin) - x8 (68 pin), both connectors equipped with ejectors.
