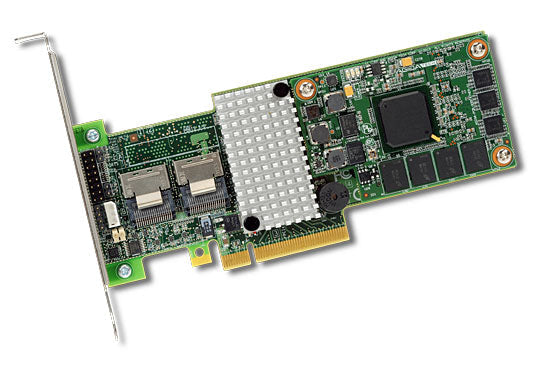

LSI MegaRAID SAS 9260CV-8I SGL 8-Port Int. 6Gb/s SAS RAID. CacheVault w/Flash NAND CV
LSI MegaRAID SAS 9260CV-8i, 8 ports internal, low-profile PCIe 2.0, CacheVault technology
Overview
- Low-profile, 8 internal port 6Gb/s SATA+SAS RAID card with x8 PCIe 2.0 host and powerful LSI? RAID-on-Chip technology
- Benefit from reduced hardware maintenance, lower total cost of ownership, and greener cache protection with CacheVault? technology.
- Flexibility to support 3Gb/s or 6Gb/s SATA, SAS or Solid State Drives
Features
- 6Gb/s SATA+SAS RAID Controller
- 8-port low-profile MD2 form factor
- Two mini-SAS SFF-8087 x4 connectors
- Low-profile MD2 form factor (6.6? X 2.536?)
- LSISAS2108 6Gb/s RAID-on-Chip
- 800MHz PowerPC? - 512MB 800MHz DDRII cache memory
- RAID Levels 0, 1, 5, 6, 10, 50 and 60
- MegaRAID? CacheVault Flash Cache Protection
- Connect up to 128 SATA and/or SAS devices
- Auto-resume on rebuild
- Auto-resume on reconstruction
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- SSD support with SSD Guard? Technology
- Global and dedicated hot spare with
revertible hot spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays - Single controller multipathing
- I/O load balancing
- Comprehensive RAID management suite
Benefits
- 6Gb/s SAS for superior RAID performance
- Support for 3Gb/s and 6Gb/s SATA and SAS hard drives and SSDs
- Optimizes solid-state storage deployments
- CacheVault technology included for greener, lower total cost cache protection
- Support for LSI Advanced Software Options including MegaRAID? Fast Path, CacheCade?, SafeStore?, and Recovery software
MegaRAID SAS 9260CV-8i
|
|
|
|---|---|
| Solution Provided | Eight-port internal SATA+SAS solutions for high I/O and bandwidth-intensive storage applications using SAS, SATA or SSDs; reduces maintenance costs and total cost of ownership using CacheVault technology. |
| Physical Dimensions | MD2 Low profile (6.6" X 2.536") |
| Connectors | Two Mini-SAS SFF-8087 internal connector |
| Device Support | Up to 128 SAS and/or SATA hard drives and SSDs |
| Host Bus Type | x8 lane PCI Express 2.0 compliant |
| Data Transfer Rates | Up to 6Gb/s per port |
| I/O Processor/SAS Controller | LSISAS2108 RAID on Chip (ROC) |
| Cache Memory | 512MB DDRII SDRAM |
| Cache Protection | MegaRAID CacheVault flash cache protection |
| Key RAID Data Protection Features |
|
| Operating Temperature | Maximum ambient: Controller Card: 60?C, Cap Pack: 55?C |
| Operating Voltage | +3.3V, +12V |
| MTBF | 680,002 Hours (controller card) |
| Regulatory Certifications | EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI;C-tick |
| RAID Management | MegaRAID Management Suite?
|
| OS Support | Extensive support includes Microsoft? Windows? 7 Vista/2008/Server 2003/2000/XP, Linux?, Solaris? (x86), Netware?, Free-BSD?, VMware? and more. * Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support |
