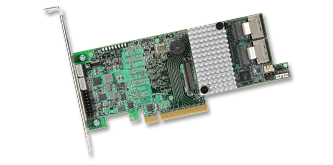

LSI MegaRAID SAS 9266-8i 8-Port PCI-Express SAS SATA RAID Controller. Card Only.
LSI MegaRAID SAS 9266-8i
- Eight-port 6Gb/s PCI Express 2.0 SATA+SAS RAID controller
- Second-generation 6Gb/s SATA+SAS controller, built on the LSISAS2208 dual-core ROC
- Better controller cache protection with eco-friendly, low-maintenance MegaRAID? CacheVault? technology
Features
- Eight internal SATA+SAS ports
- Two mini-SAS SFF-8087 x4 connectors ? side mount
- 6Gb/s throughput per port
- LSISAS2208 Dual Core ROC
o 800MHz PowerPC? - MD2 Low profile (6.6" X 2.536")
- x8 PCI Express 2.0 host interface
- 1GB DDRIII cache (1333MHz)
- Optional CacheVault Module (LSICVM01)
- Optional battery backup unit (LSIiBBU09)
- Connect up to 128 SATA and/or SAS devices
- RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
Benefits
- Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
- Ideal for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs)
- Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments
- CacheVault technology option for greener, lower total cost cache protection
- Support for MegaRAID CacheCade? Pro 2.0 read/write caching software to accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache.
- Meets high I/O transaction demands of database and datacenter applications
- Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments
|
|
|
|---|---|
| Solution Provided | Eight-port internal SATA+SAS solution for high I/O and bandwidth-intensive storage applications using SAS, SATA or SSDs; reduced maintenance costs and total cost of ownership with supported CacheVault technology. |
| Physical Dimensions | MD2 Low profile (2.536?x6.60?) |
| Internal Connectors | Two Mini-SAS SFF8087 internal connectors (side mount) |
| Device Support | Up to 128 SAS and/or SATA hard drives and SSDs |
| Host Bus Type | x8 lane PCI Express 2.0 compliant |
| Data Transfer Rates | Up to 6Gb/s per port |
| I/O Processor/SAS Controller | LSISAS2208 Dual-Core RAID on Chip (ROC) |
| Cache Memory | 1 GB 1333MHz DDRIII SDRAM |
| Cache Protection | MegaRAID CacheVault flash cache protection (optional ? LSICVM01 / LSI00297) MegaRAID LSIiBBU09 (optional ? LSIiBBU09 / LSI00279) |
| Key RAID Data Protection Features |
|
| Operating Temperature | Maximum ambient: Controller Card: 60?C, with optional CVM01: 55?C, with optional LSIiBBU09: 45?C |
| Operating Voltage | +3.3V, +12V |
| MTBF (Calculated) | 1,031,514hours |
| Regulatory Certifications | EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick |
| RAID Management | MegaRAID Management Suite?
|
| Optional SSD Optimization | MegaRAID CacheCade Software uses SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools MegaRAID Fast Path Software designed to provide high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers |
| OS Support | Extensive support includes Microsoft? Windows? Vista/2008/Server 2003/2000/XP, Linux?, Solaris? (x86), Netware?, FreeBSD?, VMware? and more. * Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support |
| Ordering Information | MegaRAID SAS 9266-8i
|
