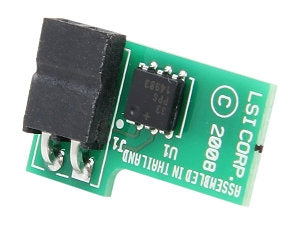

LSI00292 CacheCade+FastPath Pro 2.0 SSD read/write caching SW Pack &Physical Key LSI 9260/9261/9280
LSI MegaRAID CacheCade Pro 2.0 Software
- Read and Write caching software for 6Gb/s MegaRAID? SATA+SAS controller cards
- Leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools
- Automatic, dynamic "Hot" classification of data being written and being read
- RAID 1, 10 SSD Write Cache protection
- Configuration through MegaRAID Storage Manager? with standard virtual drives
- Accelerates performance of existing HDD arrays with small upfront investment
- Read and Write caching of hot spot data for significant reduction in I/O latency
- Simple, intuitive management tools to assign and manage CacheCade? SSD pool
- Faster I/O performance from SSD cache reduces need to short-stroke large number of HDDs, yielding lower TCO
|Software License Ordering PN||LSI00293 - Compatible with MR SAS 9260/9261/9265/9266/9270/9271/9280/9285/9286 series|
| Physical Key Ordering PN || LSI00292 - Compatible with MR SAS 9260 (-4i, -8i, -16i, CV-4i, CV-8i), 9280 (-4i4e, -16i4e, -24i4e) |
LSI00290 - Compatible with MR SAS 9265-8i, 9266 (-4i, -8i), 9285 (-8e, CV-8e,CV-8eCC),9270-8i, 9271(-4i, -8i, -8icc),
| Supported Operating Systems ||All operating systems supported by MegaRAID controller card|
| Supported SSDs ||Please visit www.lsi.com/channel for a complete list of tested SSDs|
| Max. Number of SSD in a CacheCade SSD Pool ||32|
| Max. Number of SSC VD Supported per Controller || |
Up to 64
| Max. CacheCade Capacity per Controller ||512GB|
