By LSI

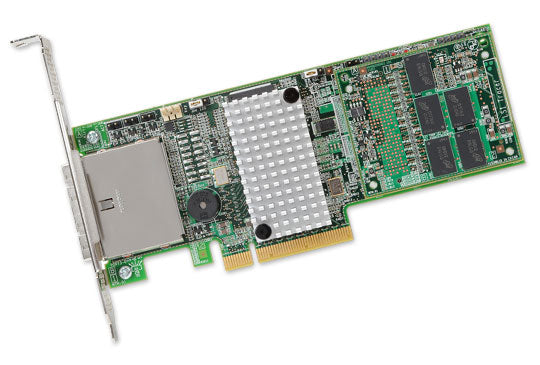

LSI00332 LSI Megaraid 9286-8e 8-Port External PCIe 3.0 6Gb/s SATA+SAS RAID Controller. SGL

Sold out

Specifications

BrandLSI
SKULSI00332/9286-8e SGL
AvailabilitySold out
ShippingFree shipping over $25
Description

Overview

  • Second-generation eight-port 6Gb/s SATA+SAS RAID controller, built on the LSISAS2208 dual-core ROC
  • Proven interoperability with the latest server platforms based on the PCI Express? 3.0 specification

    • Features

    • Eight internal SATA+SAS ports
    • Two mini-SAS SFF-8088 x4 connectors
    • 6Gb/s throughput per port
    • LSISAS2208 Dual Core ROC
      o 800MHz PowerPC?
    • MD2 Low profile (6.6" X 2.536")
    • x8 PCI Express 3.0 host interface
    • 1GB DDRIII cache (1333MHz)
    • Battery backup support (LSIiBBU09)
    • Connect up to 240 SATA and/or SAS devices
    • RAID levels 0, 1, 5 and 6
    • RAID spans 10, 50 and 60

    Benefits

    • Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
    • External JBOD expansion for up to 240 SATA and SAS HDDs and SSDs
    • Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification
    • Designed for IOPs performance and advanced software options help users realize full benefits of SSD deployments
    • Helps to meet high I/O transaction demands of database and datacenter applications
    • Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments

    Specifications



    Solution Provided Eight-port external SATA+SAS solution for performance-hungry external storage environments using up to 240 SAS, SATA and solid state drives (SSDs)
    Physical Dimensions MD2 Low profile (6.6? X 2.536?)
    Internal Connectors Two Mini-SAS SFF8088 external connectors
    Device Support Up to 240 SAS and/or SATA hard drives and SSDs
    Host Bus Type x8 lane PCI Express 3.0 compliant
    Data Transfer Rates Up to 6Gb/s per port
    I/O Processor/SAS Controller LSISAS2208 Dual-Core RAID on Chip (ROC)
    Cache Memory 1 GB 1333MHz DDRIII SDRAM
    Cache Protection Optional LSIiBBU09, a heat-tolerant intelligent battery back-up module; remote mount
    Operating Temperature Maximum ambient: Controller Card: 60?C, with optional LSIiBBU09: 55?C
    Operating Voltage +3.3V, +12V
    MTBF (Calculated) 808,712 hours
    Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
    RAID Management MegaRAID Management Suite
    • MegaRAID Storage Manager
    • MegaCLI (command-line interface)
    • WebBIOS


    Optional SSD Optimization MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache poolsMegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers
    OS Support Extensive support includes Microsoft? Windows? Vista/2008/Server 2003/2000/XP, Linux?, Solaris? (x86), Netware?, FreeBSD?, VMware? and more. * Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support


    Ordering Information MegaRAID SAS 9286-8e
    • Single Pack: LSI00332
    • LSIiBBU09
    • Kit: LSI00279
    • BBU-BRACKET-05
    • Kit: LSI00291



    Key RAID Data Protection Features

    • RAID levels 0, 1, 5 and 6
    • RAID spans 10, 50 and 60
    • Online Capacity Expansion (OCE)
    • Online RAID Level Migration (RLM)
    • Auto resume after loss of system power during arrays
      array rebuild or reconstruction (RLM)
    • Single controller Multipathing (failover)
    • Load Balancing
    • Configurable stripe size up to 1MB
    • Fast initialization for quick array setup
    • Check Consistency for background data integrity
    • SSD Support with SSD Guard? technology
    • Patrol read for media scanning and repairing
    • 64 logical drive support
    • Up to 64TB LUN support
    • DDF compliant Configuration on Disk (COD)
    • S.M.A.R.T support
    • Global and dedicated Hot Spare with Revertible
      Hot Spare support
      ? Automatic rebuild
      ? Enclosure affinity
      ? Emergency SATA hot spare for SAS arrays
    • Enclosure management
      ? SES (inband)
      ? SGPIO (sideband)



    Warranty

    Please review the product description and policy pages for warranty information.

    Packaging

    Packaging may vary by item. Contact us if you need packaging or condition details before ordering.

    Disclaimer

    Product photos are representative. Confirm exact part numbers, firmware, brackets, trays, and compatibility details before purchase when needed.
