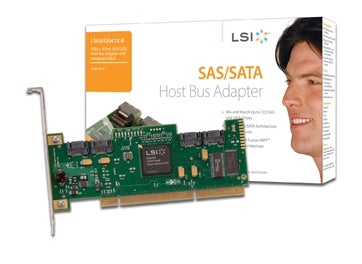

LSI00166 LSI Logic LSISAS3041X-R PCI-X, 3Gb/s SAS, 4-Port HBA. Integrated RAID 0, 1, 1E, 10E . SGL

In stock

Specifications

BrandLSI
SKULSI00166/ SAS3041X-R
AvailabilityIn stock
ShippingFree shipping over $25
Description

LSISAS3041X-R

OS Supported Package Contents

LSISAS3041X-R

The LSI SAS3041X-R is a low-cost four-port 3 Gb/s internal SAS/SATA host bus adapter. This card offers Dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. The SAS3041X-R also offers integrated RAID 0, 1, 1E and 10E for high-performance data protection, making it perfect for medium capacity internal storage applications.

Features

  • 3 Gb/s per port
  • (4) internal SATA x1 connectors
  • Integrated RAID 0, 1, 1E and 10E
  • MD-2 small form-factor design
  • Connects to both SAS and SATA HDDs and tape drives
  • Allows more than 122 total end-point devices
  • Fusion-MPT architecture providing over 140,000 I/Os per second
  • Supports all major operating systems

Benefits

  • Integrated RAID: LSI RAID avoids additional host CPU overhead
  • Flexibility: combined SAS/SATA array architecture optimizes cost
  • Scalability: addresses up to 122 devices using SAS expanders
  • Speed: with 3 Gb/s per port, combines to 2.4 Gb/s full duplex speed
  • Complete solution: kit includes all necessary cables and brackets
  • Market leader: LSI SAS powers 80% of SAS worldwide

Operating System Supported

OS Readme
SLES10 readme.txt

SLES 10 Kernel Driver.
Windows Server 2003 (64 bit) readme.txt
Windows 2003 (StorPort 64-Bit) readme.txt

MID1211709
Windows XP readme.txt

MID1211705
Windows XP (StorPort 64-Bit) readme.txt

MID1211711
Windows 2000, Windows 2003 (StorPort 32-Bit) readme.txt MID1219021
Solaris SPARC readme.txt
Linux readme.txt

2.4 Kernel Driver.
Linux readme.txt 2.6 Kernel Driver
Windows Server 2003 (64 bit) readme.txt
Windows Server 2003 (64 bit) readme.txt
Windows Server 2003 (32 bit) readme.txt
Windows XP (StorPort 64-Bit) readme.txt
Windows 2000 readme.txt
Windows XP readme.txt

64-bit symmpi driver.
Windows XP readme.txt

32-bit symmpi driver.


Products and Ordering Part Numbers

  • LSI SAS3041X-R Retail (Retail Box)
    • Individually packaged box containing the SAS3041X-R Card, driver CD, low-profile bracket, and installation guide.
    • Part Number: LSI00166

  • LSI SAS3041X-R Kit (Retail Box with Cable)
    • Individually packaged box containing the SAS3041X-R Card, driver CD, low-profile bracket, (4) x1 SATA cables, and installation guide.
    • Part Number: LSI00033-F

  • LSI SAS3041X-R Bulk Pack
    • SAS3041X-R HBA. Bulk Packaged. Card Only.
