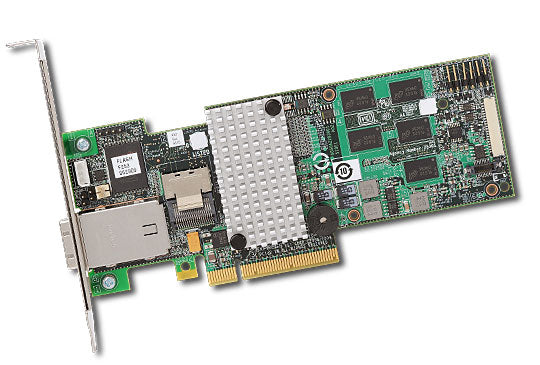

LSI00209 LSI MegaRAID SAS 9280-4i4e SGL 4 Int./4 Ext. port PCIe 6Gb/s SATA+SAS RAID Controller Card

  • $712.00

LSI00209 - LSI MegaRAID SAS 9280-4i4e 4 internal/4 external port PCIe 6Gb/s SATA+SAS RAID Controller Card. SGL.


The MegaRAID SAS 9280-4i4e, with four internal and four external ports, supports up to 240 SAS or SATA devices for both internal drive storage and external JBOD expansion.

MegaRAID SAS 9280-4i4e SGL

  • In the Box: MegaRAID SAS 9280-4i4e, LP bracket, Driver & Documentation CD (Cables not included)
  • Part #: LSI00209

Megaraid SAS 9280-4i4e Card Only / Bulk

  • Card Only. No other accessories included. You can download driver on LSI website.



MegaRAID SAS 9280-4i4e Sgl Features

  • Four internal + Four external 6Gb/s SATA+SAS ports
  • One Mini-SAS internal connector (SFF-8087)
  • One Mini-SAS external connector (SFF-8088)
  • LSISAS2108 6Gb/s RAID-on-Chip
    • 800MHz PowerPC®
  • 512MB 800MHz DDRII cache memory
  • Optional battery backup module
  • RAID Levels 0, 1, 5 and 6
  • RAID Spans 10, 50 and 60
  • PCI Express® 2.0 provides faster signaling for high-bandwidth applications
  • Support for 3Gb/s and 6Gb/s SATA and SAS hard drives
  • Support for Advanced Software options including FastPath, CacheCade, SafeStore, and Recovery


Solution Provided Four-port internal / Four-port external SATA+SAS solution for internal drive storage and external JBOD expansion using up to 240 SAS and/or SATA devices.
Physical Dimensions MD2 Low profile (6.6" X 2.536")
Internal Connectors One Mini-SAS SFF8087 4i internal connector
External Connectors One Mini-SAS SFF8088 external connector
Device Support Up to 240 SAS and/or SATA devices
Host Bus Type x8 lane PCI Express 2.0 Compliant
Data Transfer Rates Up to 6Gb/s per port
I/O Processor/SAS Controller LSISAS2108 RAID-on-Chip (ROC)
Cache Memory 512MB 800MHz DDR II SDRAM
Key RAID Data Protection Features
  • RAID levels 0, 1, 5, and 6
  • RAID spans 10, 50 and 60
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during array rebuild or reconstruction (RLM)
  • Single controller Multipathing
  • Load Balancing
  • Configurable stripe size up to 1MB
  • Fast initialization for quick array setup
  • Check Consistency for background data integrity
  • Support for Advanced Software options including FastPath, CacheCade, SafeStore, and Recovery
  • SSD Support with SSD Guard™
  • Patrol read for media scanning and repairing
  • 64 logical drive support
  • Up to 64TB LUN support
  • DDF compliant Configuration on Disk (COD)
  • S.M.A.R.T support
  • Global and dedicated Hot Spare with Revertible Hot
    Spare support
    - Automatic rebuild
    - Enclosure affinity
    - Emergency SATA hot spare for SAS arrays
  • Enclosure management
    - SES (inband)
    - SGPIO (sideband)
Operating Temperature Maximum ambient: 60°C (44.5°C w/iBBU)
Operating Voltage +3.3V
Warranty 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management MegaRAID Management Suite
- MegaRAID Storage Manager™
- MegaCLI (command-line interface)
OS Support Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
Visit the LSI download Center for the most complete list of supported operating systems:
