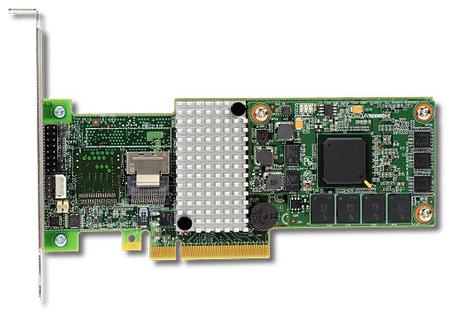

LSI00281 LSI MR SAS 9260CV-4I Kit 4-port INT 6Gb/s SAS RAID Flash NAND

  • $632.00

LSI MegaRAID SAS 9260CV-4I 4-Port Internal 6Gb/s SAS RAID Controller. CacheVault w/Flash NAND CV series.




  • Low-profile, 4 internal port 6Gb/s SATA+SAS RAID card with x8 PCIe 2.0 host and powerful LSI? RAID-on-Chip technology
  • Benefit from reduced hardware maintenance, lower total cost of ownership, and greener cache protection with CacheVault? technology
  • Flexibility to support 3Gb/s or 6Gb/s SATA, SAS or Solid State Drives
Ordering Information LSI00280 (single-pack)
LSI00281 (Kit)


  • 6Gb/s SATA+SAS RAID Controller
  • 4-port low-profile MD2 form factor
  • One mini-SAS SFF-8087 x4 connector
  • Low-profile MD2 form factor (6.6? X 2.536?)
  • LSISAS2108 6Gb/s RAID-on-Chip
      o  800MHz PowerPC?
  • 512MB 800MHz DDRII cache memory
  • RAID Levels 0, 1, 5, 6, 10, 50 and 60
  • MegaRAID? CacheVault Flash Cache Protection
  • Connect up to 128 SATA and/or SAS devices
  • Auto-resume on rebuild
  • Auto-resume on reconstruction
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • SSD support with SSD Guard? Technology
  • Global and dedicated hot spare with revertible hot spare support
      o  Automatic rebuild
      o  Enclosure affinity
      o  Emergency SATA hot spare for SAS arrays
  • Single controller multipathing
  • I/O load balancing
  • Comprehensive RAID management suite


  • 6Gb/s SAS for superior RAID performance
  • Support for 3Gb/s and 6Gb/s SATA and SAS hard drives and SSDs
  • Optimizes solid-state storage deployments
  • CacheVault technology included for greener, lower total cost cache protection
  • Support for LSI Advanced Software Options including MegaRAID? Fast Path, CacheCade?, SafeStore?, and Recovery software

Product Specifications

MegaRAID SAS 9260CV-4i


Solution Provided Four-port internal SATA+SAS solutions for high I/O and bandwidth-intensive storage applications using SAS, SATA or SSDs; reduces maintenance costs and total cost of ownership using CacheVault technology.
Physical Dimensions MD2 Low profile (6.6" X 2.536")
Connectors One Mini-SAS SFF-8087 internal connector
Device Support Up to 128 SAS and/or SATA hard drives and SSDs
Host Bus Type x8 lane PCI Express 2.0 compliant
Data Transfer Rates Up to 6Gb/s per port
I/O Processor/SAS Controller LSISAS2108 RAID on Chip (ROC)
Cache Memory 512MB DDRII SDRAM
Cache Protection MegaRAID CacheVault flash cache protection
Key RAID Data Protection Features
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during array
    rebuild or reconstruction (RLM)
  • Single controller Multipathing (failover)
  • Load Balancing
  • Configurable stripe size up to 1MB
  • Fast initialization for quick array setup
  • Check Consistency for background data integrity
  • Patrol read for media scanning and repairing
  • 64 logical drive support
  • Up to 64TB LUN support
  • DDF compliant Configuration on Disk (COD)
  • S.M.A.R.T support
  • Global and dedicated Hot Spare with Revertible Hot Spare support
    ? Automatic rebuild
    ? Enclosure affinity
    ? Emergency SATA hot spare for SAS arrays
  • Enclosure management
    ? SES (inband)
    ? SGPIO (sideband)
Operating Temperature Maximum ambient: Controller Card: 60?C, Cap Pack: 55?C
Operating Voltage +3.3V, +12V
MTBF 680,002 Hours (controller card)
Warranty 3 years, includes advanced technical support, advanced replacement option
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI;C-tick
RAID Management MegaRAID Management Suite?
  • MegaRAID Storage Manager?
  • MegaCLI (command-line interface)
  • WebBIOS
OS Support Extensive support includes Microsoft? Windows? 7 Vista/2008/Server 2003/2000/XP, Linux?, Solaris? (x86), Netware?, Free-BSD?, VMware? and more.
* Visit the LSI download Center for the most complete list of supported operating systems:
