By LSI

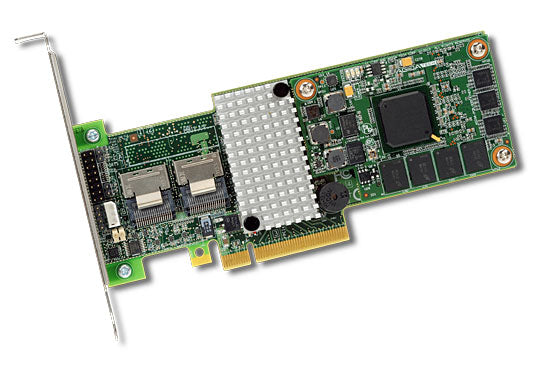

LSI00282 LSI MegaRAID SAS 9260CV-8I SGL 8-Port Int. 6Gb/s SAS RAID. CacheVault w/Flash NAND CV

Sold out

Specifications

BrandLSI
SKULSI00282
AvailabilitySold out
ShippingFree shipping over $25
Description

LSI MegaRAID SAS 9260CV-8i, 8 ports internal, low-profile PCIe 2.0, CacheVault technology



Specification

Overview

  • Low-profile, 8 internal port 6Gb/s SATA+SAS RAID card with x8 PCIe 2.0 host and powerful LSI? RAID-on-Chip technology
  • Benefit from reduced hardware maintenance, lower total cost of ownership, and greener cache protection with CacheVault? technology.
  • Flexibility to support 3Gb/s or 6Gb/s SATA, SAS or Solid State Drives



Features

  • 6Gb/s SATA+SAS RAID Controller
  • 8-port low-profile MD2 form factor
  • Two mini-SAS SFF-8087 x4 connectors
  • Low-profile MD2 form factor (6.6? X 2.536?)
  • LSISAS2108 6Gb/s RAID-on-Chip
    - 800MHz PowerPC?
  • 512MB 800MHz DDRII cache memory
  • RAID Levels 0, 1, 5, 6, 10, 50 and 60
  • MegaRAID? CacheVault Flash Cache Protection
  • Connect up to 128 SATA and/or SAS devices
  • Auto-resume on rebuild
  • Auto-resume on reconstruction
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • SSD support with SSD Guard? Technology
  • Global and dedicated hot spare with
    revertible hot spare support
    - Automatic rebuild
    - Enclosure affinity
    - Emergency SATA hot spare for SAS arrays
  • Single controller multipathing
  • I/O load balancing
  • Comprehensive RAID management suite

Benefits

  • 6Gb/s SAS for superior RAID performance
  • Support for 3Gb/s and 6Gb/s SATA and SAS hard drives and SSDs
  • Optimizes solid-state storage deployments
  • CacheVault technology included for greener, lower total cost cache protection
  • Support for LSI Advanced Software Options including MegaRAID? Fast Path, CacheCade?, SafeStore?, and Recovery software

MegaRAID SAS 9260CV-8i




Solution Provided Eight-port internal SATA+SAS solutions for high I/O and bandwidth-intensive storage applications using SAS, SATA or SSDs; reduces maintenance costs and total cost of ownership using CacheVault technology.
Physical Dimensions MD2 Low profile (6.6" X 2.536")
Connectors Two Mini-SAS SFF-8087 internal connector
Device Support Up to 128 SAS and/or SATA hard drives and SSDs
Host Bus Type x8 lane PCI Express 2.0 compliant
Data Transfer Rates Up to 6Gb/s per port
I/O Processor/SAS Controller LSISAS2108 RAID on Chip (ROC)
Cache Memory 512MB DDRII SDRAM
Cache Protection MegaRAID CacheVault flash cache protection
Key RAID Data Protection Features
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during array
    rebuild or reconstruction (RLM)
  • Single controller Multipathing (failover)
  • Load Balancing
  • Configurable stripe size up to 1MB
  • Fast initialization for quick array setup
  • Check Consistency for background data integrity
Operating Temperature Maximum ambient: Controller Card: 60?C, Cap Pack: 55?C
Operating Voltage +3.3V, +12V
MTBF 680,002 Hours (controller card)

Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI;C-tick
RAID Management MegaRAID Management Suite?
  • MegaRAID Storage Manager?
  • MegaCLI (command-line interface)
  • WebBIOS
OS Support Extensive support includes Microsoft? Windows? 7 Vista/2008/Server 2003/2000/XP, Linux?, Solaris? (x86), Netware?, Free-BSD?, VMware? and more.
* Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support



Warranty

Please review the product description and policy pages for warranty information.

Packaging

Packaging may vary by item. Contact us if you need packaging or condition details before ordering.

Disclaimer

Product photos are representative. Confirm exact part numbers, firmware, brackets, trays, and compatibility details before purchase when needed.
