By LSI

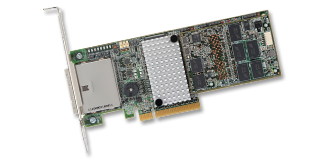

LSI00298 LSI MegaRAID SAS 9285CV-8e Low-profile MD2 8 Ext. Ports PCI-EXP SATA SAS RAID. Single Pack

In stock

Specifications

BrandLSI
SKULSI00298/9285CV-8e SGL
AvailabilityIn stock
ShippingFree shipping over $25
Description
MegaRAID SAS 9285CV-8e
  • 2nd-gen 8-port 6Gb/s SATA+SAS RAID controller, built on the LSISAS2208 dual-core ROC
  • Configures external storage enclosures with high performance SAS HDDs, SATA HDDs or SSDs
  • Reduces hardware maintenance, lowers TCO, and provides greener cache protection with MegaRAID? CacheVault? technology





Features

  • Eight external SATA+SAS ports
  • Two mini-SAS SFF-8088 x4 connectors
  • 6Gb/s throughput per port
  • LSISAS2208 Dual Core ROC
    o 800MHz PowerPC?
  • MD2 Low profile (6.6" X 2.536")
  • x8 PCI Express 2.0 host interface
  • 1GB DDRIII cache (1333MHz)
  • CacheVault flash cache protection (included)
  • Connect up to 240 SATA and/or SAS devices
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60

Benefits

  • Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
  • External JBOD expansion for up to 240 SATA and SAS HDDs and SSDs
  • Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments
  • CacheVault technology included for greener, lower total cost cache protection
  • Support for MegaRAID CacheCade? Pro 2.0 read/write caching software to accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache.
  • Meets high I/O transaction demands of database and datacenter applications
  • Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments

MegaRAID SAS 9285CV-8e




Solution Provided Eight-port external SATA+SAS solution for performance-hungry external storage environments using up to 240 SAS, SATA and solid state drives (SSDs); reduces maintenance costs and total cost of ownership using CacheVault technology.
Physical Dimensions MD2 Low profile (2.536?x6.60?)
Internal Connectors Two Mini-SAS SFF8088 internal connectors
Device Support Up to 240 SAS and/or SATA hard drives and SSDs
Host Bus Type x8 lane PCI Express 2.0 compliant
Data Transfer Rates Up to 6Gb/s per port
I/O Processor/SAS Controller LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory 1 GB 1333MHz DDRIII SDRAM
Cache Protection MegaRAID CacheVault flash cache protection (included)
Key RAID Data Protection Features
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during arrays
    array rebuild or reconstruction (RLM)
  • Single controller Multipathing (failover)
  • Load Balancing
  • Configurable stripe size up to 1MB
  • Fast initialization for quick array setup
  • Check Consistency for background data integrity
  • SSD Support with SSD Guard?
  • Patrol read for media scanning and repairing
  • 64 logical drive support
  • Up to 64TB LUN support
  • DDF compliant Configuration on Disk (COD)
  • S.M.A.R.T support
  • Global and dedicated Hot Spare with Revertible
    Hot Spare support
    ? Automatic rebuild
    ? Enclosure affinity
    ? Emergency SATA hot spare for SAS arrays
  • Enclosure management
    ? SES (inband)
    ? SGPIO (sideband)
Operating Temperature Maximum ambient: Controller Card: 60?C, Cap Pack: 55?C
Operating Voltage +3.3V, +12V
Hardware Warranty 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management MegaRAID Management Suite
  • MegaRAID Storage Manager
  • MegaCLI (command-line interface)
  • WebBIOS
Optional SSD Optimization MegaRAID CacheCade Software uses SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools
MegaRAID Fast Path Software is designed to provide high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers
OS Support Extensive support includes Microsoft? Windows? Vista/2008/Server 2003/2000/XP, Linux?, Solaris? (x86), Netware?, FreeBSD?, VMware? and more.
* Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support
​Ordering Information ​LSI00298 (Single-pack)
