By LSI

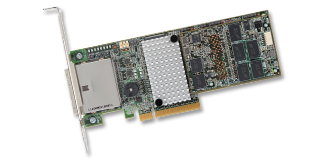

LSI00306 LSI MegaRAID SAS 9266-4i Dual-Core 4-Port Internal PCIe SATA SAS Controller Kit w/ Cable

In stock

Specifications

BrandLSI
SKULSI00306/9266-4i KIT
AvailabilityIn stock
ShippingFree shipping over $25
Description
LSI MegaRAID SAS 9266-4i
  • Four-port 6Gb/s PCI Express 2.0 SATA+SAS RAID controller
  • Second-generation 6Gb/s SATA+SAS controller, built on the LSISAS2208 dual-core ROC
  • Better controller cache protection with eco-friendly, low-maintenance MegaRAID? CacheVault? technology
​

Features

  • Four internal SATA+SAS ports
  • One mini-SAS SFF-8087 x4 connector ? side mount
  • 6Gb/s throughput per port
  • LSISAS2208 Dual Core ROC
    o  800MHz PowerPC?
  • MD2 Low profile (6.6" X 2.536")
  • x8 PCI Express? 2.0 host interface
  • 1GB DDRIII cache (1333MHz)
  • Optional CacheVault Module (LSICVM01)
  • Optional battery backup unit (LSIiBBU09)
  • Connect up to 128 SATA and/or SAS devices
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60

Benefits

  • Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
  • Ideal for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs)
  • Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments
  • CacheVault technology option for greener, lower total cost cache protection
  • Support for MegaRAID CacheCade? Pro 2.0 read/write caching software to accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache.
  • Meets high I/O transaction demands of database and datacenter applications
  • Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments
MegaRAID? SAS 9266-4i



Solution Provided Four-port internal SATA+SAS solution for high I/O and bandwidth-intensive storage applications using SAS, SATA or SSDs; reduced maintenance costs and total cost of ownership with supported CacheVault technology.
Physical Dimensions MD2 Low profile (2.536?x6.60?)
Internal Connectors One Mini-SAS SFF8087 internal connectors (side mount)
Device Support Up to 128 SAS and/or SATA hard drives and SSDs
Host Bus Type x8 lane PCI Express 2.0 compliant
Data Transfer Rates Up to 6Gb/s per port
I/O Processor/SAS Controller LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory 1 GB 1333MHz DDRIII SDRAM
Cache Protection MegaRAID CacheVault flash cache protection (optional ? LSICVM01 / LSI00297)
MegaRAID LSIiBBU09 (optional ? LSIiBBU09 / LSI00279)
Key RAID Data Protection Features
  • RAID levels 0, 1, 5, and 6
  • RAID spans 10, 50 and 60
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
  • Single controller Multipathing (failover)
  • Load Balancing
  • Configurable stripe size up to 1MB
  • Fast initialization for quick array setup
  • Check Consistency for background data integrity
  • SSD Support with SSD Guard?
  • Patrol read for media scanning and repairing
  • 64 logical drive support
  • Up to 64TB LUN support
  • DDF compliant Configuration on Disk (COD)
  • S.M.A.R.T support
  • Global and dedicated Hot Spare with Revertible Hot Spare support ? Automatic rebuild ? Enclosure affinity ? Emergency SATA hot spare for SAS arrays
  • Enclosure management ? SES (inband) ? SGPIO (sideband)
Operating Temperature Maximum ambient: Controller Card: 60?C, with optional CVM01: 55?C, with optional LSIiBBU09: 45?C
Operating Voltage +3.3V, +12V
MTBF (Calculated) 1,031,514hours
Hardware Warranty 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management MegaRAID Management Suite?
MegaRAID Storage Manager?
MegaCLI (command-line interface)
WebBIOS
Optional SSD Optimization MegaRAID CacheCade Software uses SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools
MegaRAID Fast Path Software designed to provide high-performance I/O acceleration for SSD arrays connected to 6Gb/s
MegaRAID SATA+SAS controllers
OS Support Extensive support includes Microsoft? Windows? Vista/2008/Server 2003/2000/XP, Linux?, Solaris? (x86), Netware?, FreeBSD?, VMware? and more.
* Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support
​Ordering Information ​

MegaRAID SAS 9266-4i

  • Single Pack: LSI00305
  • Kit: LSI00306 LSICVM01 Cables included in kit: One Mini-SAS to (4)
  • Kit: LSI00297 LSIiBBU09
  • Kit: LSI00279
