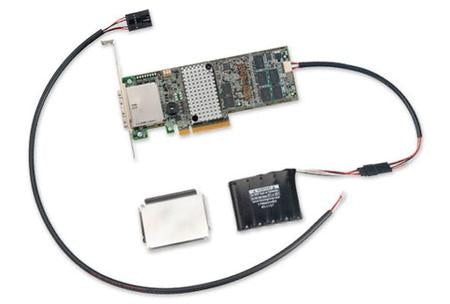

LSI MegaRAID SAS 9286CV-8eCC Sgl

• Eight-Port 6Gb/s PCI Express® 3.0 SATA+SAS RAID Controller with CacheVault™ Flash Cache Protection and SSD-Optimized Software
• Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification
• Designed for configuring external storage enclosures with high-performance SAS hard drives, high-capacity SATA hard drives or application-accelerating solid state drives (SSDs)

In the Box:
MR SAS 9286CV-8eCC includes RAID controller with CacheCade Pro 2.0 and Fast Path software enabled, CacheVault flash module, CacheVault power module, CacheVault clip and remote cable), QIG, LP bracket

Part #: LSI00335

Features

MegaRAID® SAS

• Eight external SATA+SAS ports
• Two mini-SAS SFF-8088 x4 connectors
• 6Gb/s throughput per port
• LSISAS2208 Dual Core ROC
  • 800MHz PowerPC®
• MD2 Low profile (6.6" X 2.536")
• x8 PCI Express 3.0 host interface
• 1GB DDRIII cache (1333MHz)
• MegaRAID® CacheVault flash cache protection (included)
• MegaRAID CacheCade® Pro 2.0 and MegaRAID Fast Path Software included
• Connect up to 240 SATA and/or SAS devices
• RAID levels 0, 1, 5 and 6
• RAID spans 10, 50 and 60
• Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
• External JBOD expansion for up to 240 SATA and SAS devices
• Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification
• Designed for IOPs performance and advanced software options help users realize full benefits of SSD deployments
• CacheVault technology included for greener, lower total cost cache protection
• SSD-Optimized Software included; CacheCade Pro 2.0 and Fast Path Ready
• Helps to meet high I/O transaction demands of database and datacenter applications
• Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments
