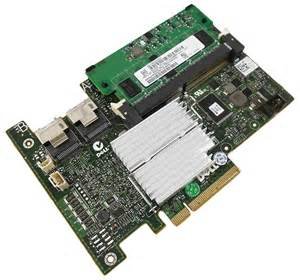

Dell PERC H700 Integrated 8-Port Internal SAS RAID Controller Card. 6Gb/s SAS 2.0, PCI-Express
Note: Please select battery, mounting bracket, and cable options above. If you plan to install this controller in the Internal Storage Slot of your Dell server, no mounting bracket is needed. Otherwise, you can add the mounting bracket.
Compatible P/N: R374M / CNXVV / H2R6M / KK67X / XXFVX
The latest PERC Series-7 Controllers enable a mature 6Gb/s SAS end-to-end solution with better performance capability and increased flexibility and scalability to the Dell 11th Generation PowerEdge Servers, the PowerVault MD3200 & MD3220 Shared SAS Arrays and the MD1200 and MD1220 Expansion Enclosures.
Key Features
PCI-Express Gen2.0 support
6Gb/s SAS (SAS 2.0) host interface
Doubles throughput performance capability
PERC H700 & PERC H800:
Increased IOPS performance with Cut-Through IO & SSDs
Adds support for Self-Encrypting Drives (SED)
Adds 512MB & 1GB Non-Volatile (NV) Cache to to PERC H700 & H800
PERC H800 also offers the following for PowerVault MD1200 and MD1220 enclosures:
Increased Capacity and Scalability - up to 192 drives connected to one PERC H800
Increased Flexibility - connect both 2.5" (MD1220) and 3.5" (MD1200) enclosures to a single PERC H800
PERC H200:
Adds expander support to connect to more than 8 drives
Adds RAID-10 support
6Gbps SAS HBA:
Adds support for MD3200 & MD3220 Share SAS Arrays
Adds support for Tape
The card will work in Non-Dell servers, but if you are looking for Dell server compatibilty, see below.
Perc H700 Integrated Compatible Dell Servers
PowerEdge R815
PowerEdge R715
PowerEdge R710
PowerEdge R610
PowerEdge T610
PowerEdge R510
PowerEdge T710
PowerEdge R910
External OEMR R710
PowerVault NX3000
PowerVault NX3100
PowerEdge R810
PowerVault DL2200 CommVault
PowerVault DL2200
PowerEdge R515
Dell DX6000
Dell DR4000
Perc H700 Adapter Compatible Dell Servers
PowerEdge C1100
PowerEdge R410
PowerEdge T410
PowerEdge C2100
External OEMR R310
PowerEdge R310
PowerEdge T310
PowerEdge R415
PowerVault NX300
