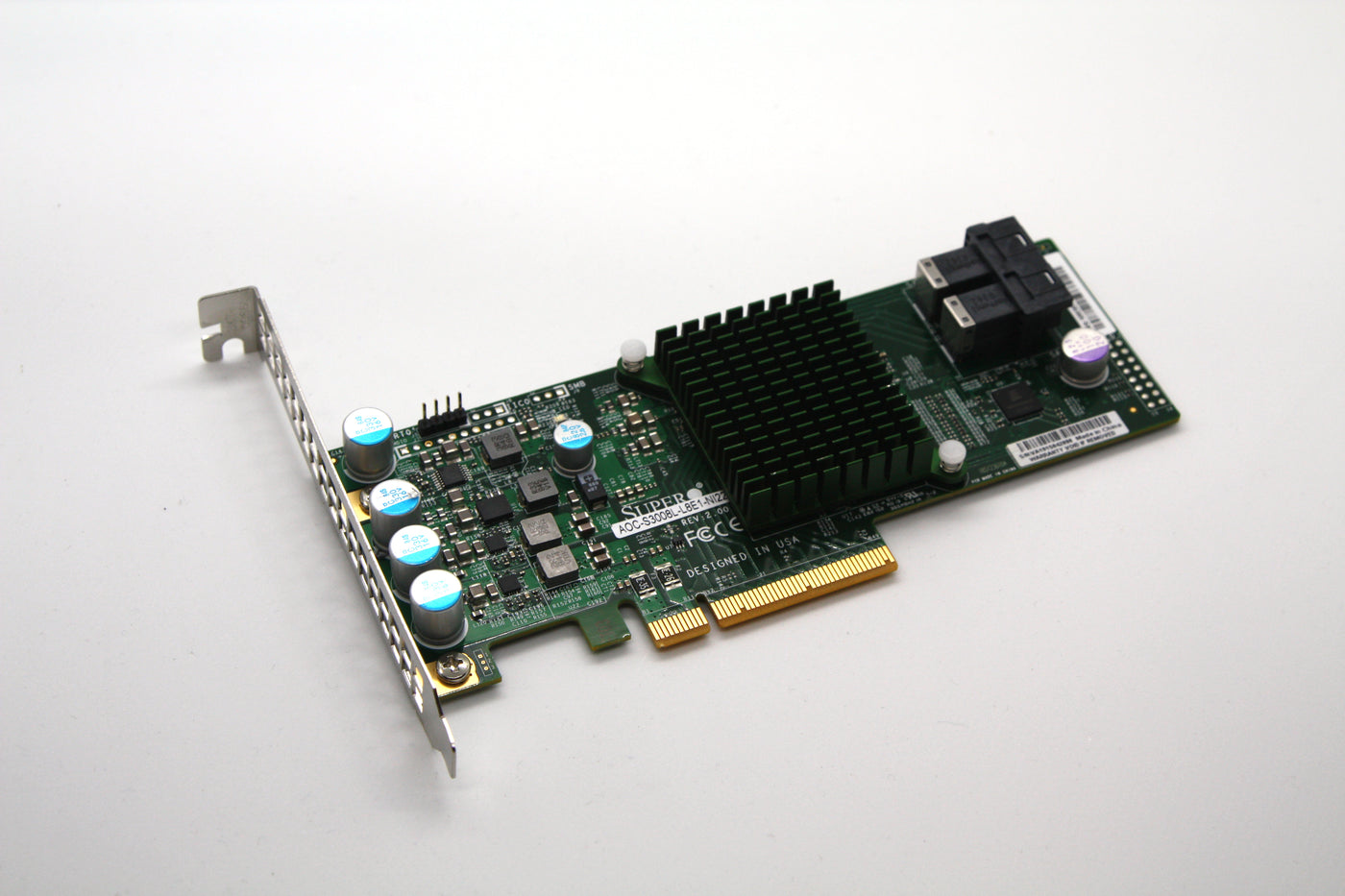

Supermicro AOC-S3008L-L8E 12Gb/s Eight-Port SAS Internal Host Bus Adapter
Supermicro 12Gb/s Eight-Port SAS Internal Host Bus Adapter
The Supermicro HBA AOC-S3008L-L8e features 8 internal SAS connectors for high-performance storage connectivity.
Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum performance and a PCI Express host interface for increased bandwidth.
The AOCS3008L-L8e supports 122 devices as a HBA in IT mode.
Broadcom 3008 SAS controller
8-port (internal), 12Gb/s per port
Supports 122 devices - HBA only
Automatically negotiates PCI-E (1.x, 2.x and 3.x) link widths
Power management support
Supports 3.0, 6.0 and 12Gb Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Zoning capability w/ SAS3 expanders
OS Support: Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux
Processor at 1.2 GHZ
AOC-S3008L-L8e+ enables IPMI interface through new I²C port
Uses 2 MiniSAS HD (SFF-8643) connectors
Operating Temp: 0° to 55°C
