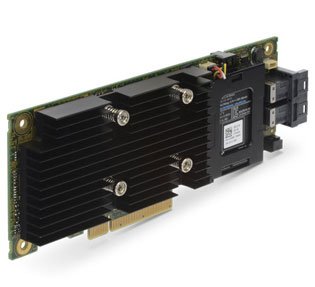

Dell 044GNF PERC H730 12Gb PCI-E 3.0 X8 SAS SATA RAID Controller with 1GB NV Cache

  • $319.00


Dell 44GNF PERC H730 12Gb PCI-E 3.0 X8 SAS SATA RAID Controller with 1GB NV Cache for Dell PowerEdge Servers T630, R630, T430, R330, R230, T330, T130, etc.

-Please select your mounting bracket option

Raid Controller

  As Storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of Dell PowerEdge RAID Controller (PERC) cards offer unmatched I/O performance for database applications, streaming digital media environments and storage intensive applications.
Key Features for the Series-9, 12Gb/s SAS PowerEdge RAID Controller (PERC):

  • PCI-Express Gen3.0 support & 12Gb/s SAS (SAS 3.0) host interface
  • 2GB NV Flash Backed Cache on the H730P & H830
  • 1GB NV Flash Backed Cache on the H730
  • Significantly increased IOPs performance & throughput performance capability
  • Capable of RAID as well as Non-RAID (JBOD Mode) operations

Dell PERC Products


Model Interface Support PCI Support SAS Connectors Cache Memory Size Write Back Cache RAID Levels Max Drive Support RAID Support
PowerEdge RAID Controller (PERC) Series 9
PERC H830 Adapter 12Gb/s SAS
6Gb/s SATA
PCI-Express 3.0 2x4 External
2GB NV
Flash Backed Cache 0,1,5,6,10,50,60 255 Hardware RAID
PERC H730P Adapter 12Gb/s SAS
6Gb/s SATA
PCI-Express 3.0 2x4 Internal
2GB NV
Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730P Mini Mono 12Gb/s SAS
6Gb/s SATA
PCI-Express 3.0 2x4 Internal
2GB NV
Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730P Mini Blade 12Gb/s SAS
6Gb/s SATA
PCI-Express 3.0 2x4 Internal
2GB NV
Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730 Adapter 12Gb/s SAS
6Gb/s SATA
PCI-Express 3.0 2x4 Internal 1GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730 Mini Mono 12Gb/s SAS
6Gb/s SATA
PCI-Express 3.0 2x4 Internal 1GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730 Mini Blade 12Gb/s SAS
6Gb/s SATA
PCI-Express 3.0 1x4 Internal 1GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID



See Perc H730 Specs here



*List below is for your reference only. List may not be complete. You may be able to use in it Non-Dell as well. We do not guarantee compatibility or suitability, but if it does not work for you, you are welcome to return it.

*Select mounting bracket option above.

Power
Edge Internal Storage
PowerEdge Series 9 Controllers
Model PERC H730 Adapter
T630 Full-Height
R630 Low-Profile
T430 Full-Height
R330 Yes - No Bracket
R230 Yes - No Bracket
T330 Yes - No Bracket
T130 Yes - No Bracket
