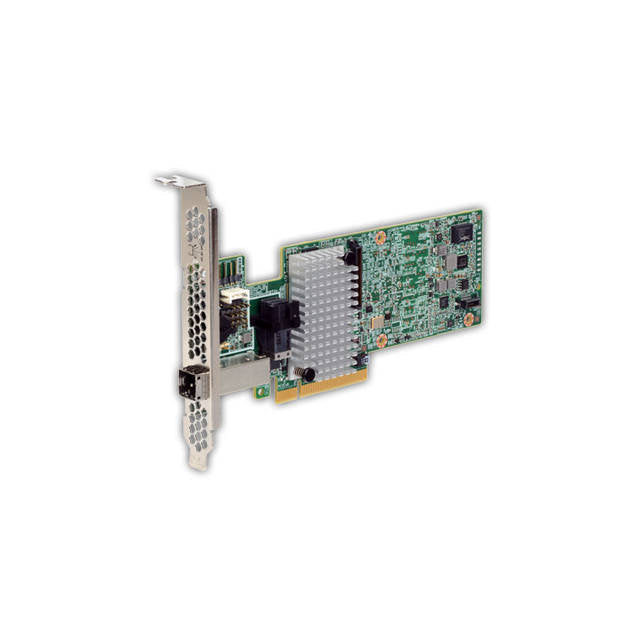

LSI00439 MegaRAID SAS 9380-4i4e LSI SAS 4 Int. & 4 Ext. Ports PCIe 3.0 12Gb/s RAID Controller

In stock

Specifications

BrandLSI
SKULSI00439 / 9380-4i4e SGL
AvailabilityIn stock
ShippingFree shipping over $25
Description

LSI00439 MegaRAID SAS 9380-4i4e LSI SAS 4 internal & 4 external Ports RAID 0/1/5/50/6 PCI-EXP 3.0, 1G DDRIII, MD2, Single Pack

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9380-4i4e 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

  • Connect up to 240 SATA or SAS drives with four internal and four external 12Gb/s SAS ports
  • Provides internal storage, external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements.
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection.
Product Ordering Part # What's in the box
MegaRAID SAS 9380-4i4e LSI00439 MegaRAID SAS 9380-4i4e, QIG, LP bracket


Specifications Value
Cache Protection Optional CacheVault Flash Module (LSICVM02)
Includes CVFM04, CVPM02, mounting clip, and cable
RAID Management Software MegaRAID Storage Manager
StorCLI (command-line interface)
CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure)
RAID-on-Chip Controller LSISAS3108 dual core RAID on Chip (ROC)
Cache Memory 1GB 1866MHz DDRIII SDRAM
Host Bus Type x8 lane PCI Express® 3.0
Physical Dimensions MD2 Low profile (6.6" x 2.536")
External Ports 4
Internal Ports 4
Data Transfer Rates Up to 12Gb/s per port
Devices Supported Up to 240 SATA and/or SAS devices
External Connectors 1 Mini-SAS HD SFF8644
Internal Connectors 1 HD Mini-SAS SFF8643 (Horizontal mount)
MTBF 1,230,142 hours
Operating Temperature Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02) 55°C
Operating Systems Extensive support includes Microsoft® Windows® Server 2012/8 & 7/2008/Vista/2003/XP, Linux®, Solaris™ (x86), FreeBSD®, VMware® and more. Visit the downloads page for the most complete list of supported operating systems: lsi.com/support
Operating Voltage +3.3V, +12V
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
