By Dell

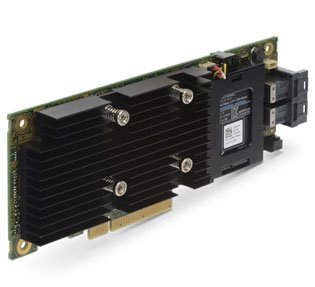

Dell PERC H730 Adapter 12Gb/s PCI-E 3.0 X8 SAS SATA RAID Controller with 1GB NV Cache

In stock

Specifications

BrandDell

SKU405-AADX

AvailabilityIn stock

ShippingFree shipping over $25

$289.00

Compare at $339.00

● In stock

Need help checking compatibility? Contact us before ordering.

Bulk orders (20+)

If you have special requirements for bulk orders, reach out to the team for assistance.

Contact our sales team

Satisfaction guaranteed

We focus on practical compatibility help, responsive support, and accurate product information.

Our Price Protection Guarantee

Please review your shipping policy, returns policy, and product listing details for complete information.

Description

Dell 44GNF PERC H730 12Gb PCI-E 3.0 X8 SAS SATA RAID Controller with 1GB NV Cache for Dell PowerEdge Servers T630, R630, T430, R330, R230, T330, T130, etc.

Note: No mounting brackets. Please see other listing if you need mounting bracket

Raid Controller

	As Storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of Dell PowerEdge RAID Controller (PERC) cards offer unmatched I/O performance for database applications, streaming digital media environments and storage intensive applications.
	Key Features for the Series-9, 12Gb/s SAS PowerEdge RAID Controller (PERC): PCI-Express Gen3.0 support & 12Gb/s SAS (SAS 3.0) host interface 2GB NV Flash Backed Cache on the H730P & H830 1GB NV Flash Backed Cache on the H730 Significantly increased IOPs performance & throughput performance capability Capable of RAID as well as Non-RAID (JBOD Mode) operations

Dell PERC Products

Model	Interface Support	PCI Support	SAS Connectors	Cache Memory Size	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
PowerEdge RAID Controller (PERC) Series 9
PERC H830 Adapter	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 External	2GB NV	Flash Backed Cache	0,1,5,6,10,50,60	255	Hardware RAID
PERC H730P Adapter	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	2GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730P Mini Mono	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	2GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730P Mini Blade	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	2GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730 Adapter	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	1GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730 Mini Mono	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	1GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730 Mini Blade	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	1x4 Internal	1GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID

See Perc H730 Specs here

*List below is for your reference only. List may not be complete. You may be able to use in it Non-Dell as well. We do not guarantee compatibility or suitability, but if it does not work for you, you are welcome to return it.

*Select mounting bracket option above.

Power Edge Internal Storage	PowerEdge Series 9 Controllers
Model	PERC H730 Adapter
T630	Full-Height
R630	Low-Profile
T430	Full-Height
R330	Yes - No Bracket
R230	Yes - No Bracket
T330	Yes - No Bracket
T130	Yes - No Bracket

Warranty

Please review the product description and policy pages for warranty information.

Packaging

Packaging may vary by item. Contact us if you need packaging or condition details before ordering.

Disclaimer

Product photos are representative. Confirm exact part numbers, firmware, brackets, trays, and compatibility details before purchase when needed.

Dell PERC H730 Adapter 12Gb/s PCI-E 3.0 X8 SAS SATA RAID Controller with 1GB NV Cache

Specifications

Dell 44GNF PERC H730 12Gb PCI-E 3.0 X8 SAS SATA RAID Controller with 1GB NV Cache for Dell PowerEdge Servers T630, R630, T430, R330, R230, T330, T130, etc.
